Clearview Vision Inset (Deep Version) Baffle/Throat Plate
Quality Spares at LOW prices - Stove Spares Ltd

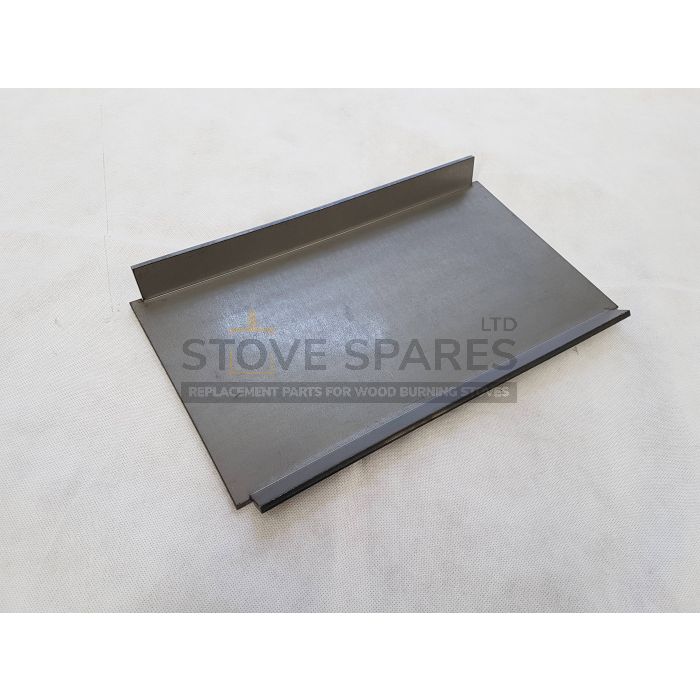

Baffle/Throat Plate for the Clearview Vision Inset (Deep Version)
The Clearview Vision Inset (Deep Version) Baffle/Throat Plate is suitable for the deep version only and is designed to protect the top of the stove from excessive heat and to help reflect the heat back into the stove to provide more efficient burn.
Baffle Dimensions (Approx): 347mm wide x 230mm deep
Compatible with the Vision Inset Deep stove. (Not Suitable for the standard version)
Installation Instructions:
Installing the Clearview Vision Inset deep Baffle/Throat Plate is extremely easy and can be completed in around 5 minutes.
- Remove the existing throat plate by simply lifting the baffle with one hand.
- Remove one of the side bricks or in some cases you can angle the baffle down into the fire box.
- Replace the new baffle by lifting the baffle up and replacing the side brick (If applicable) and gently lower the baffle in to place.
- Give the stove a light firing for the next hour to allow the baffle to settle.
|
Fire Brick Warranty Information: Please note that due to the very nature of firebricks there are no warranties provided by the manufacturers. Fire bricks are excluded from any warranties in the same way as car brake pads would be due to the many variances that can cause these parts to deteriorate. When used correctly and carefully fire bricks can last 12 months and sometimes even longer. Please note that using the fire only a few times before the brick cracks does not mean that the brick is faulty as it may have absorbed moisture, a log may have moved during firing and hit the brick or simply been overfired. Bricks can still be used if cracked. As long as the crack is not over 6mm wide (Pound coin) then it will still insulate in the same way. Fore more information please read our full warranty and Tips guide -> CLICK HERE By placing an order for firebricks you accept these conditions. |
